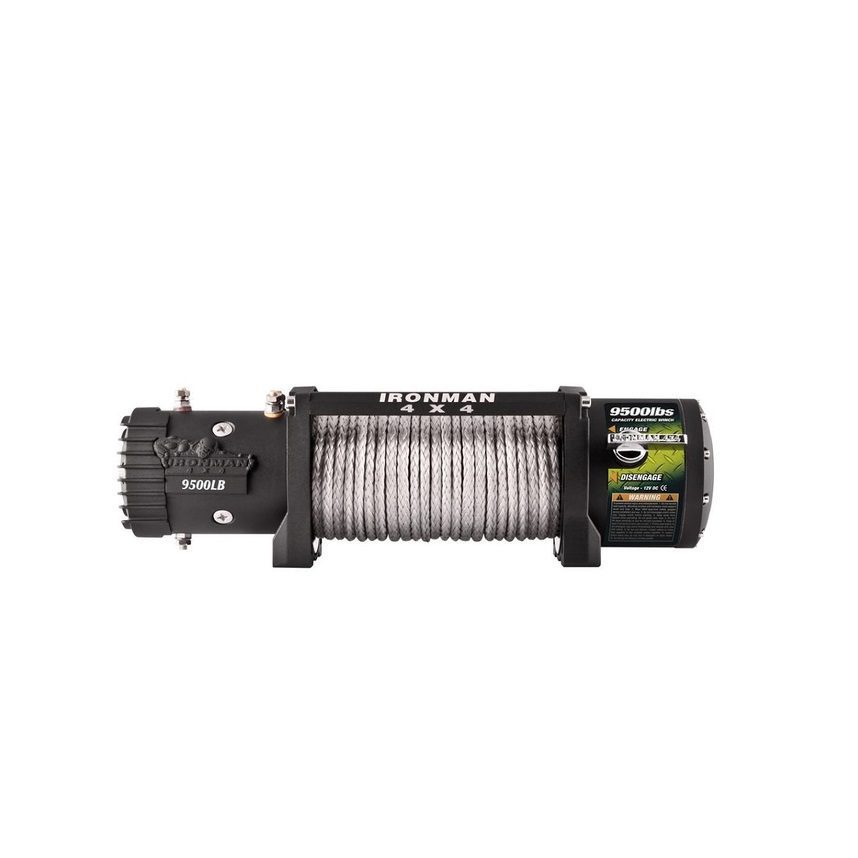

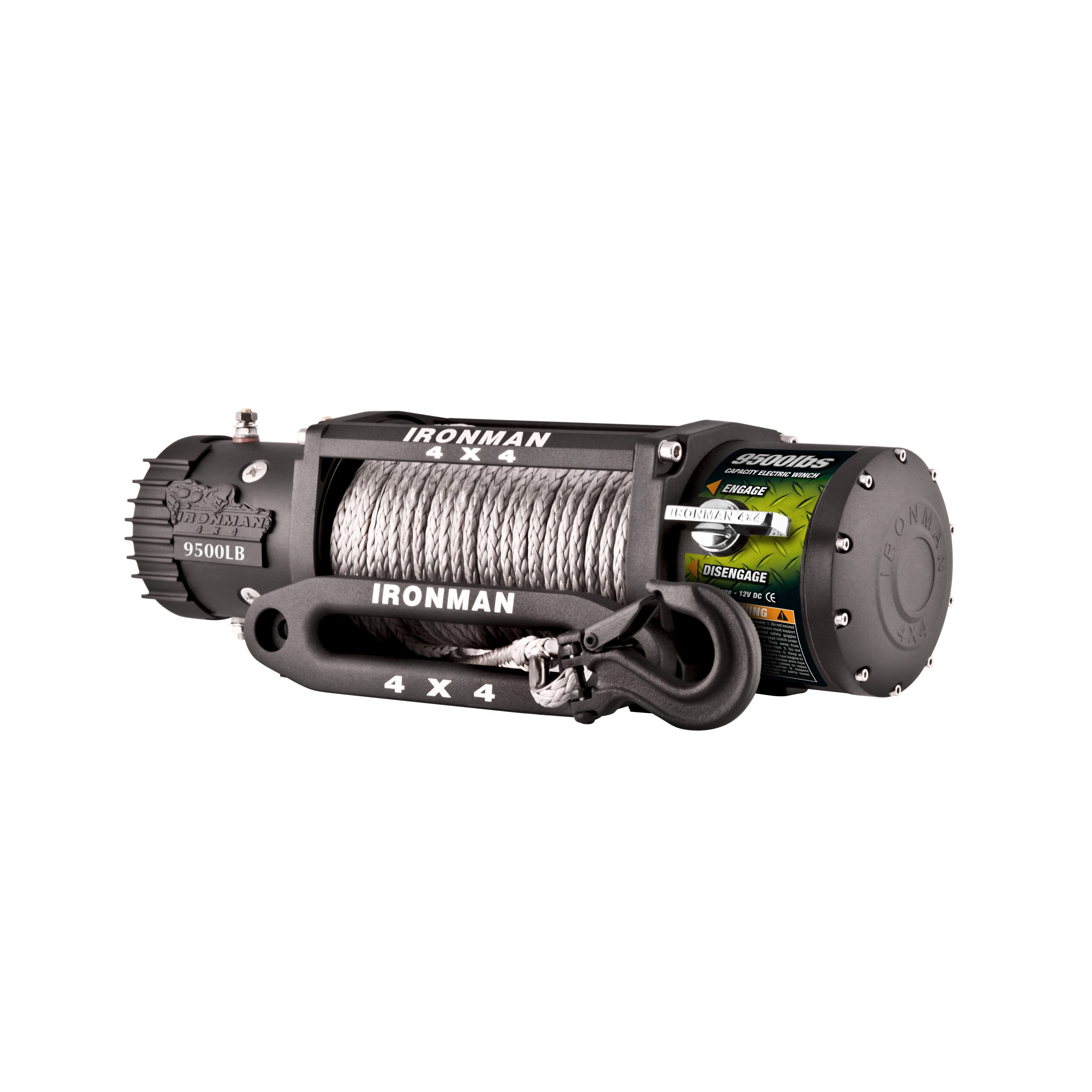

9,500LBS SYNTHETIC ROPE MONSTER WINCH
KWD 319.000
Designed and developed right here at Ironman 4×4 Australia.
In stock
Description

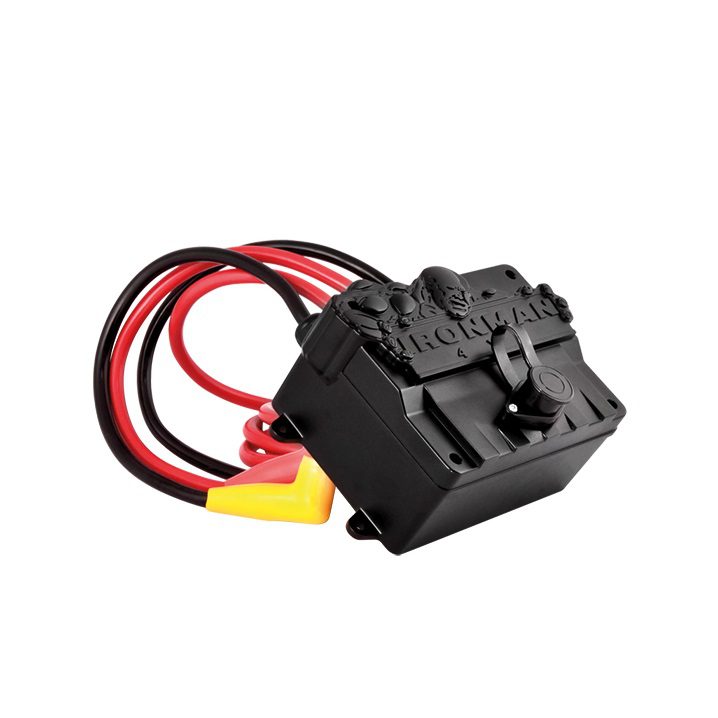

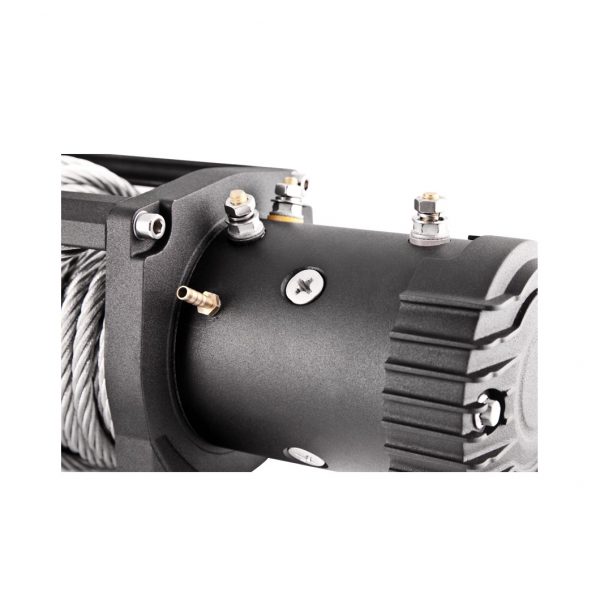

The Ironman 4×4 Monster Winch has evolved! Totally redesigned and upgraded, Ironman 4×4 Monster winches include stronger motors, heavy duty casings, synthetic ropes, competition style solenoid and a motor breather.
Designed and developed right here at Ironman 4×4 Australia, our latest Monster Winch range are a must have accessory for your four wheel drive!
SPECIFICATIONS
Motor                           5.5HP / 4.1KW
Power                           12VDC
Weight                          28kg

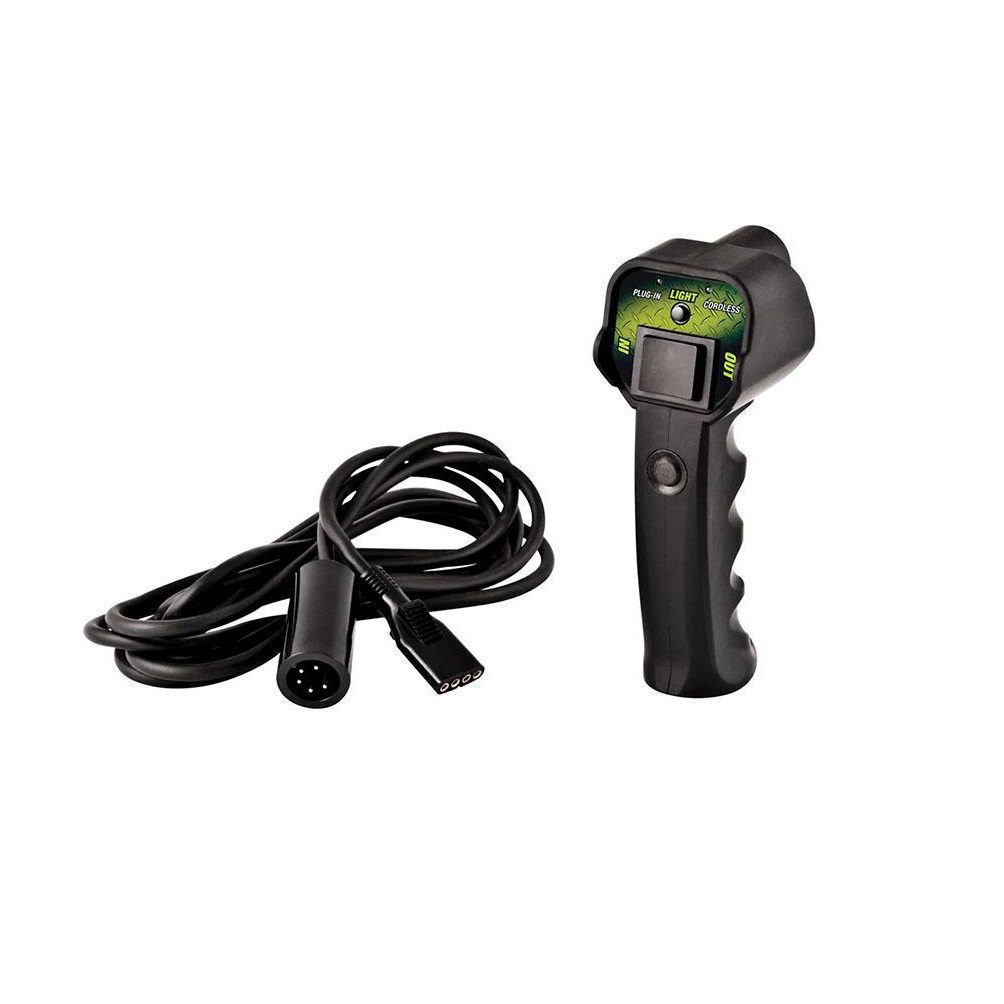

Wireless                         Remote Range 30.5m
Remote Lead Length              3.6m
Gear Train                       3 Stage Planetary
Gear Reduction Ratio             265:1
Brake                           Automatic Camp Lock (In Drum)
Synthetic Rope Dimensions       28m x 8mm
Overall Dimensions               540mm (L) x 165mm (H) x 150mm (W)
Mounting Bolt Pattern            254mm x 114.3mm
Notes                            Minimum Battery for winching – 650CCA
WARRANTY
5Years
Additional information
| Brand |
|---|
Related Products
XRC GEN2 17500lb Winch
GEAR BOX 12000 COMPLETE
TIE BARS (2PCS)
MONSTER WINCH SOLENOID
20M WINCH EXTENSION ROPE 9,500KG
GEAR BOX 9500 COMPLETE
WIRELESS REMOTE WITH RECEIVER
3000lb Cable Winch XRC 3.0
MAXTRAX Static Winch Rope – 30m
CONTROL BOX LEAD SOCKET
SMALL CONTROL BOX WITH REMOTE
MAXTRAX Winch Ring 120
2000lb Cable Winch XRC 2.0
9,500LBS STEEL CABLE MONSTER WINCH
MOTOR WWB9500 WITH BRAKE ATTACHMENT
PRADO 150 2013-2017 OEM Winch Mount
20M WINCH EXTENSION ROPE 4,500KG
HOOK MONSTER WINCH REPLACEMENT
LC100 Front Winch Mount Plate
XRC Logo Winch Cover
PLATE (MOTOR END)
CLUTCH HANDLE
ALLOY HAWSE FAIRLEAD
LC200 2008-2015 OEM Winch Mount
DIFF BREATHER KIT (All MODELS)
3000lb Synthetic Rope Winch XRC3 Comp
SNATCH BLOCK
FAIRLEAD ROLLERS

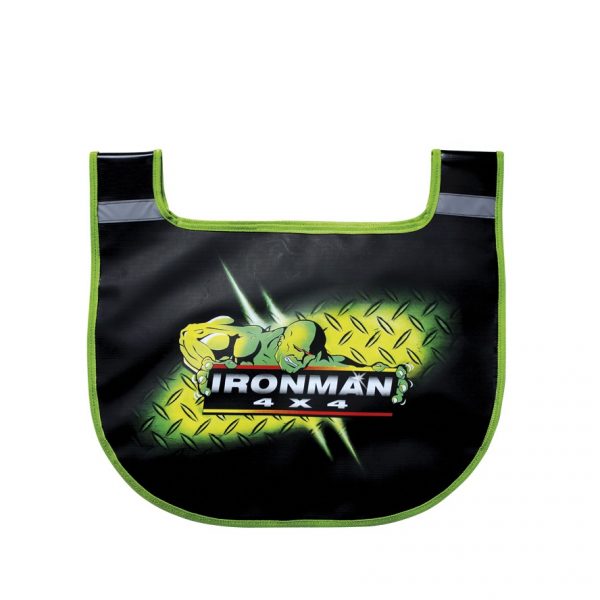

WINCH DAMPER BLANKET
